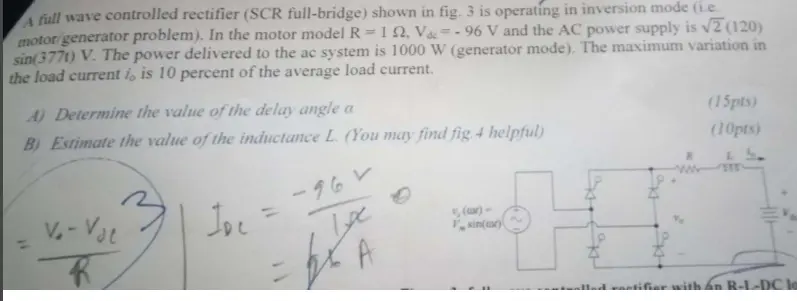

A full wave controlled rectifier (SCR full-bridge) shown in fig. 3 is operating in inversion mode (i.e. motor/generator problem). In the motor model R-12, Vac-96 V and the AC power supply is √2 (120) sin(377t) V. The power delivered to the ac system is 1000 W (generator mode). The maximum variation in the load current i, is 10 percent of the average load current. A) Determine the value of the delay angle a B) Estimate the value of the inductance L. (You may find fig. 4 helpful) (15pts) (10pts) V₁-Vac 3 1962 Ipe جوا R v, (car)-> sin(car) A Had antifier with an R-1-DC lo Figure 3: full-wave controlled rectifier with an R-L-DC load 1.0 0.8 ΠΑΡΑ 0.6 -2 0.4 n=4 0.2 22 -6 -8 0 40 80 120 160 90 Delay Angle Figure 4: Output harmonic voltages as a function of delay angle.
