السؤال

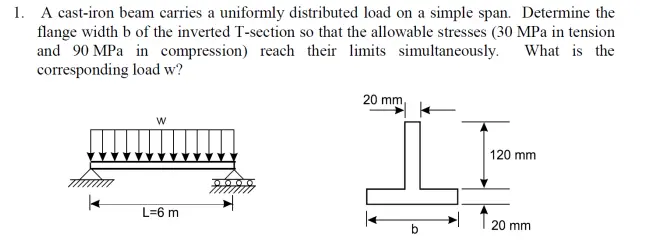

Transcribed Image Text:
1. A cast-iron beam carries a uniformly distributed load on a simple span. Determine the
flange width b of the inverted T-section so that the allowable stresses (30 MPa in tension
and 90 MPa in compression) reach their limits simultaneously.
corresponding load w?
What is the
L=6 m
A
20 mm
b
120 mm
20 mm
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
