السؤال
Transcribed Image Text:

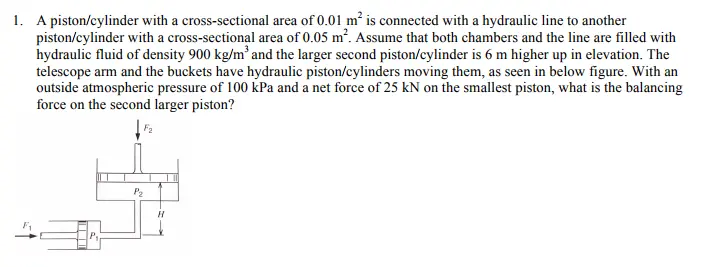

1. A piston/cylinder with a cross-sectional area of 0.01 m² is connected with a hydraulic line to another
piston/cylinder with a cross-sectional area of 0.05 m². Assume that both chambers and the line are filled with
hydraulic fluid of density 900 kg/m³ and the larger second piston/cylinder is 6 m higher up in elevation. The
telescope arm and the buckets have hydraulic piston/cylinders moving them, as seen in below figure. With an
outside atmospheric pressure of 100 kPa and a net force of 25 kN on the smallest piston, what is the balancing
force on the second larger piston?
F₂
P2
H
