السؤال

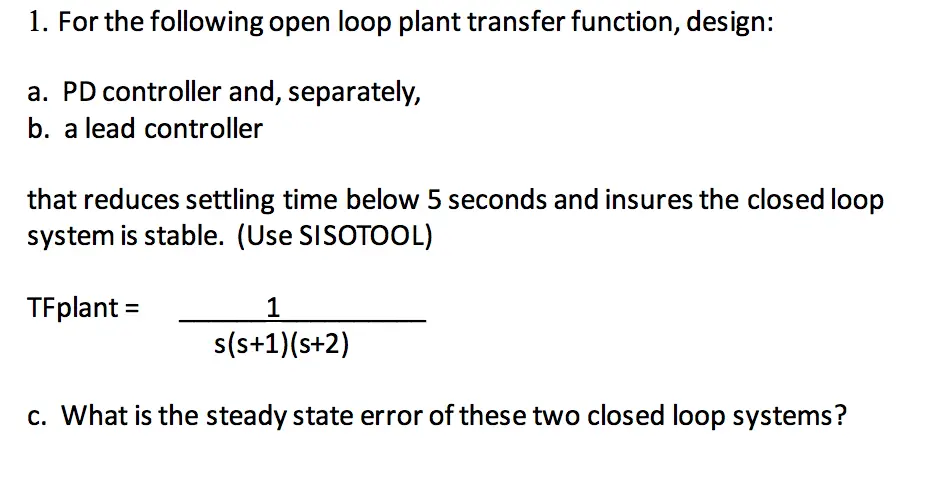

Transcribed Image Text:
1. For the following open loop plant transfer function, design:
a. PD controller and, separately,
b. a lead controller
that reduces settling time below 5 seconds and insures the closed loop
system is stable. (Use SISOTOOL)
TFplant =
1
s(s+1)(s+2)
c. What is the steady state error of these two closed loop systems?
