السؤال
Transcribed Image Text:

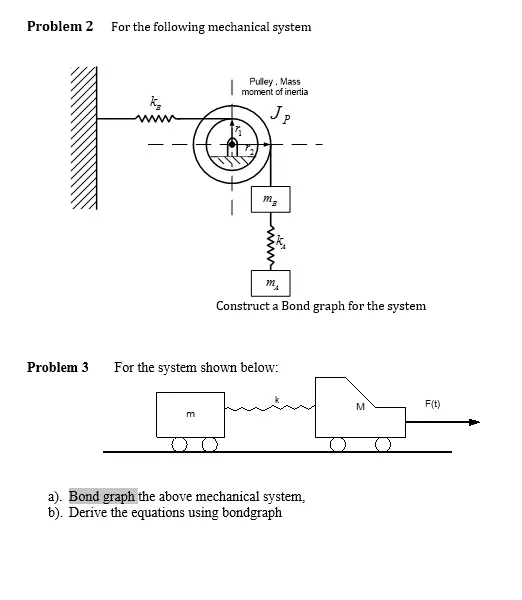

Problem 2
For the following mechanical system
k₂
|
Pulley, Mass
moment of inertia
JP
ms
m
Construct a Bond graph for the system
Problem 3
For the system shown below:
m
a). Bond graph the above mechanical system,
b). Derive the equations using bondgraph
F(t)
