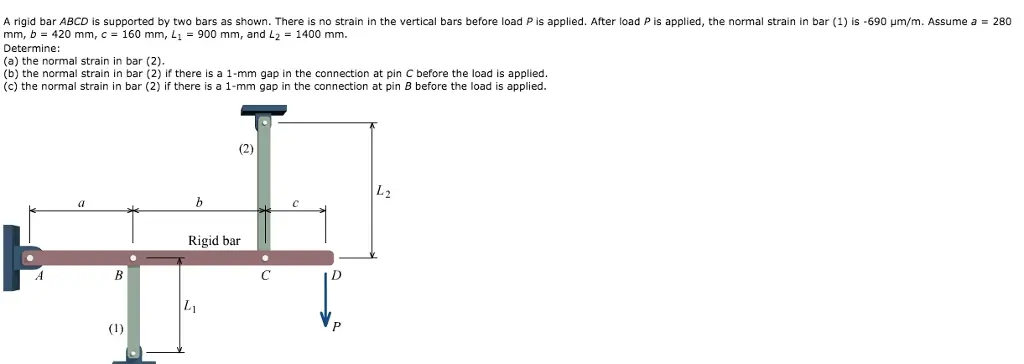

A rigid bar ABCD is supported by two bars as shown. There is no strain in the vertical bars before load P is applied. After load P is applied, the normal strain in bar (1) is -690 μm/m. Assume a = 280 mm, b = 420 mm, c = 160 mm, L₁ = 900 mm, and L2 = 1400 mm. Determine: (a) the normal strain in bar (2). (b) the normal strain in bar (2) if there is a 1-mm gap in the connection at pin C before the load is applied. (c) the normal strain in bar (2) if there is a 1-mm gap in the connection at pin B before the load is applied. a b B (1) Rigid bar L₁ C P L2 (a) Determine the deformation (positive if stretches, negative if shortens) of bar (1). Answer: 51= -0.621 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work LINK TO TEXT Attempts: Unlimited Part 2 Correct (a) Determine the rigid bar deflection at pin B. (Enter a positive value if pin B moves upward. Enter a negative value if pin B moves downward.) Answer: Vg= -0.621 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work LINK TO TEXT Attempts: Unlimited Part 3 Correct (a) Determine the rigid bar deflection at pin C. (Enter a positive value if pin C moves upward. Enter a negative value if pin C moves downward.) Answer: Vc= -1.55 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work LINK TO TEXT Part 4 Correct (a) Determine the deformation in bar(2) (positive if bar (2) stretches, negative if it shortens). Answer: 21.55 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work LINK TO TEXT Attempts: Unlim Part 5 Correct (a) Determine the normal strain in bar (2) (positive if tensile, negative if compressive). Answer: 21107.1 the tolerance is +/-2% με. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited Part 6 Correct (b) Determine the deformation of bar (1) (positive if stretches, negative if shortens) if there is a 1-mm gap in the connection at pin C before the load is applied. Answer: 1=-0.621 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work LINK TO TEXT Correct (b) Determine the rigid bar deflection at pin B if there is a 1 -mm gap in the connection at pin C before the load is applied. (Enter a positive value if pin B moves upward. Enter a negative value if pin B moves downward.) -0.621 Answer: VB = the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Part 8 Incorrect. Be sure units are consistent. Here is the deformation diagram. 700mm 280mm B (2) Initial position Deflected position 1mm Deformation diagram showing gap at pin C. (b) Determine the rigid bar deflection at pin C if there is a 1-mm gap in the connection at pin C before the load is applied. (Enter a positive value if pin C moves upward. Enter a negative value if pin C moves downward.) 1.55 Answer: Vc= the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Part 9 Incorrect. Remember to account for the gap at C. (b) Determine the deformation (positive if the bar stretches, negative if it shortens) of bar (2) if there is a 1-mm gap in the connection at pin C before the load is applied. Answer: 622.55 the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Part 10 (b) Determine the normal strain in bar (2) if there is a 1-mm gap in the connection at pin C before the load is applied. Answer: €2= the tolerance is +/-2% με. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Part 11 (c) Determine the deformation (positive if stretches, negative if shortens) of bar (1) if there is a 1 mm gap in the connection at pin B before the load is applied. Answer: 5₁ = the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Part 12 (c) Determine the rigid bar deflection at pin B if there is a 1-mm gap in the connection at pin B before the load is applied. (Enter a positive value if pin B moves upward. Enter a negative value if pin B moves downward.) Answer: VB = the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Part 13 (c) Determine the rigid bar deflection at pin C if there is a 1-mm gap in the connection at pin B before the load is applied. (Enter a positive value if pin C moves upward. Enter a negative value if pin C moves downward.) Answer: Vc= the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Part 14 (c) Determine the deformation (positive if bar (2) stretches, negative if bar (2) shortens) of bar (2) if there is a 1-mm gap in the connection at pin B before the load is applied. Answer: 52 = the tolerance is +/-2% mm. Click if you would like to Show Work for this question: Open Show Work Part 15 (c) Determine the normal strain in bar (2) if there is a 1-mm gap in the connection at pin B before the load is applied. Answer: £2 = the tolerance is +/-2% με. Click if you would like to Show Work for this question: Open Show Work Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER Attempts: Unlimited SAVE FOR LATER SUBMIT ANSWER
