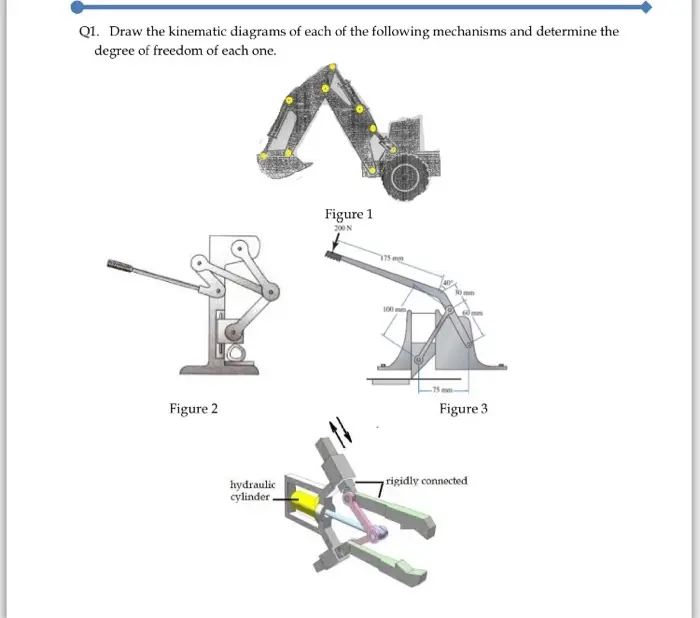

Q1. Draw the kinematic diagrams of each of the following mechanisms and determine the degree of freedom of each one. Figure 2 Figure 1 200 N 175mm 100mm, Figure 3 hydraulic cylinder. rigidly connected
