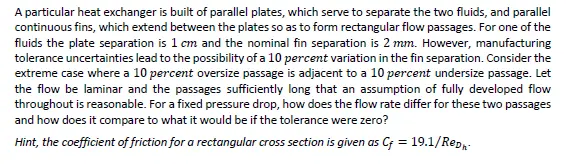

Transcribed Image Text:
A particular heat exchanger is built of parallel plates, which serve to separate the two fluids, and parallel
continuous fins, which extend between the plates so as to form rectangular flow passages. For one of the
fluids the plate separation is 1 cm and the nominal fin separation is 2 mm. However, manufacturing
tolerance uncertainties lead to the possibility of a 10 percent variation in the fin separation. Consider the
extreme case where a 10 percent oversize passage is adjacent to a 10 percent undersize passage. Let
the flow be laminar and the passages sufficiently long that an assumption of fully developed flow
throughout is reasonable. For a fixed pressure drop, how does the flow rate differ for these two passages
and how does it compare to what it would be if the tolerance were zero?
Hint, the coefficient of friction for a rectangular cross section is given as Cf = 19.1/Redh
