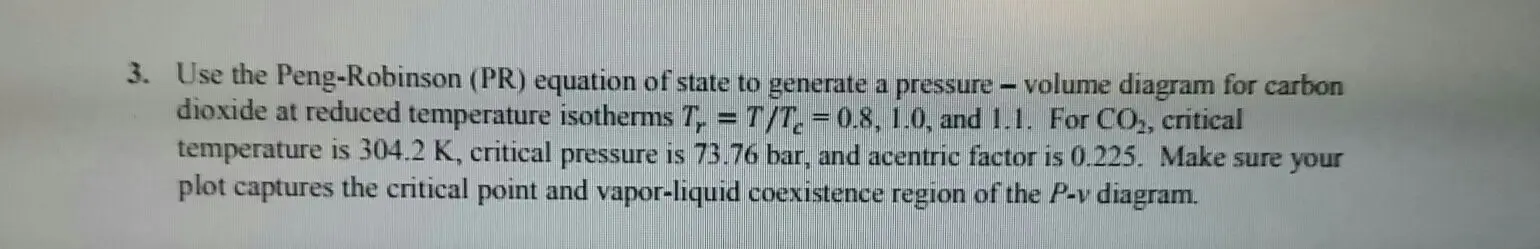

3. Use the Peng-Robinson (PR) equation of state to generate a pressure-volume diagram for carbon dioxide at reduced temperature isotherms T, = T/T =0.8, 1.0, and 1.1. For CO₂, critical - temperature is 304.2 K, critical pressure is 73.76 bar, and acentric factor is 0.225. Make sure your plot captures the critical point and vapor-liquid coexistence region of the P-v diagram. Experimental values of the molar volume of carbon dioxide as a function of temperature and pressure are available from NIST's Chemistry Webbook - Thermophysical Properties of Fluid Systems http://webbook.nist.gov/chemistry/fluid/. Plot the NIST data along with the Peng-Robinson EoS calculations on the same P-v plot. Compare the results and discuss the predictive accuracy of the PR EOS. The Peng-Robinson equation of state is given by P= RT v-b aa (T) v(v+b)+b(v-b) Here, a = 0.45724 R2T/P b = 0.07780RT/P a(T) = [1 + x(1 − √T/T)] K = 0.37464 + 1.54226w - 0.26992w (wacentric factor) Refer to chapter 4 of Koretsky 2nd edition for information about the PR equation of state.
