السؤال
Transcribed Image Text:

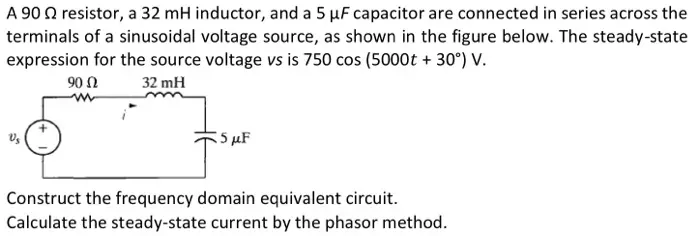

A 90 resistor, a 32 mH inductor, and a 5 μF capacitor are connected in series across the
terminals of a sinusoidal voltage source, as shown in the figure below. The steady-state
expression for the source voltage vs is 750 cos (5000t + 30°) V.
902
32 mH
5μF
Construct the frequency domain equivalent circuit.
Calculate the steady-state current by the phasor method.
