السؤال
Transcribed Image Text:
A

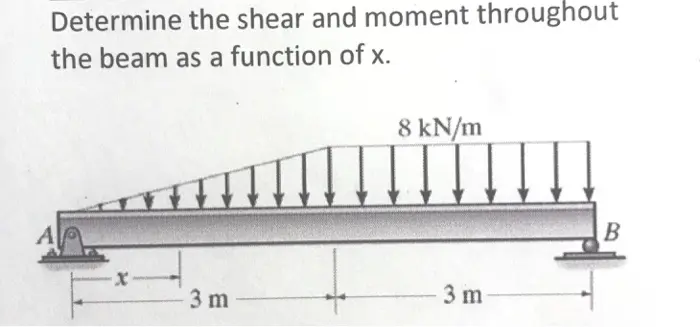

Determine the shear and moment throughout
the beam as a function of x.
8 kN/m
X
3 m
3 m
B
Problem 5
Draw the shear and moment diagrams for
each member of the frame. Assume joints B
and C are fixed connected.
B
2 k/ft
8 ft 4 ft
1.25 k
A
DO
C
1.8 k
15 ft
