السؤال
Transcribed Image Text:

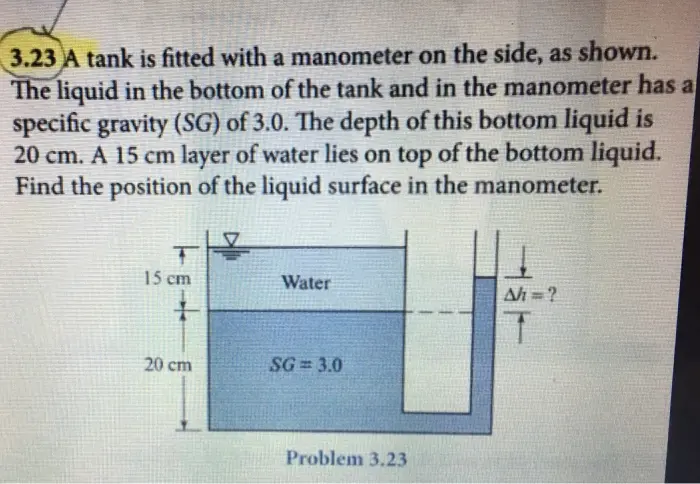

3.23 A tank is fitted with a manometer on the side, as shown.
The liquid in the bottom of the tank and in the manometer has a
specific gravity (SG) of 3.0. The depth of this bottom liquid is
20 cm. A 15 cm layer of water lies on top of the bottom liquid.
Find the position of the liquid surface in the manometer.
15 cm
Water
20 cm
SG=3.0
Problem 3.23
Ah=?
