السؤال

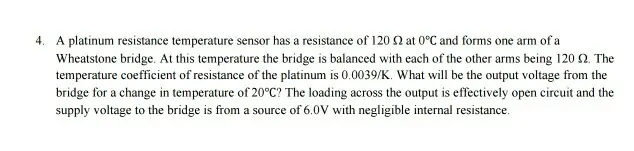

Transcribed Image Text:
4. A platinum resistance temperature sensor has a resistance of 120 2 at 0°C and forms one arm of a
Wheatstone bridge. At this temperature the bridge is balanced with each of the other arms being 120 2. The
temperature coefficient of resistance of the platinum is 0.0039/K. What will be the output voltage from the
bridge for a change in temperature of 20°C? The loading across the output is effectively open circuit and the
supply voltage to the bridge is from a source of 6.0V with negligible internal resistance.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
