السؤال

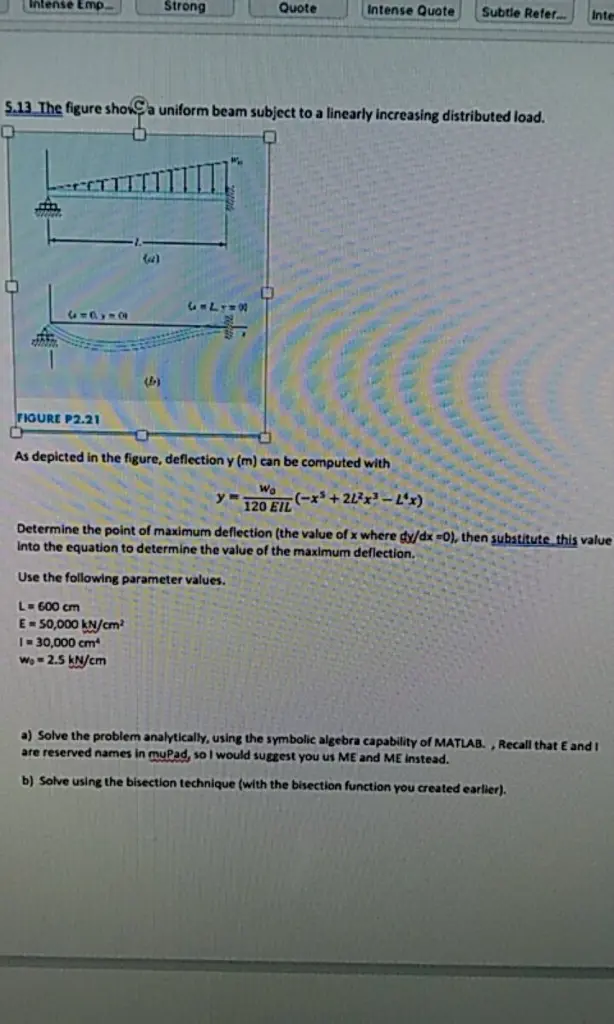

Transcribed Image Text:
Intense Emp.
Strong
Quote
Intense Quote Subtle Refer...
Inte
5.13 The figure showCa uniform beam subject to a linearly increasing distributed load.
801103
(w)
847443
FIGURE P2.21
As depicted in the figure, deflection y (m) can be computed with
y
Wo
120 EIL
(-x³ +21²x³-L*x)
Determine the point of maximum deflection (the value of x where dy/dx =0), then substitute this value
Into the equation to determine the value of the maximum deflection.
Use the following parameter values.
L= 600 cm
E-50,000 kN/cm²
1-30,000 cm
wo-2.5 kN/cm
a) Solve the problem analytically, using the symbolic algebra capability of MATLAB., Recall that E and I
are reserved names in muPad, so I would suggest you us ME and ME instead.
b) Solve using the bisection technique (with the bisection function you created earlier).
