Problem 2.

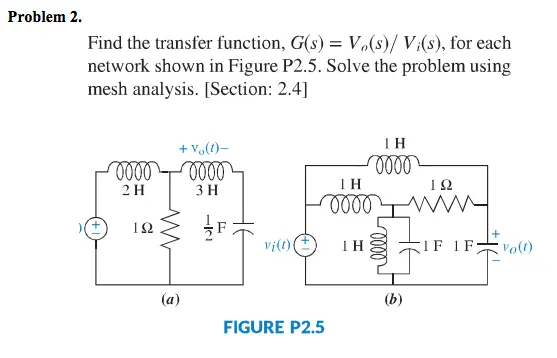

Find the transfer function, G(s) = Vo(s)/ Vi(s), for each
network shown in Figure P2.5. Solve the problem using
mesh analysis. [Section: 2.4]
