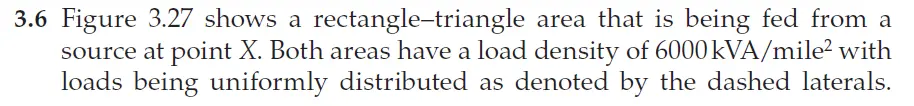

3.6 Figure 3.27 shows a rectangle-triangle area that is being fed from a source at point X. Both areas have a load density of 6000 kVA/mile² with loads being uniformly distributed as denoted by the dashed laterals. X 1 mile 1.5 miles 1.5 miles FIGURE 3.27 Rectangular-triangular area of Problem 3.6. Z 2000 kVA In addition to the uniformly distributed loads, there is a "spot load" at point Z that is 2000 kVA. The Kdrop factor for the primary main conductors is 0.00022626% drop/kVA-mile and the Krise factor for the primary main conductors is 0.00028436% rise/kvar-mile. a. Determine the percent drop to point Z. b. Determine the kvar rating (to the nearest 300 kvar/phase) for a capac- itor bank to be placed at point Y in order to limit the voltage drop to Z to 3%. c. With the capacitor in place, what now is the percent drop to point Z?
