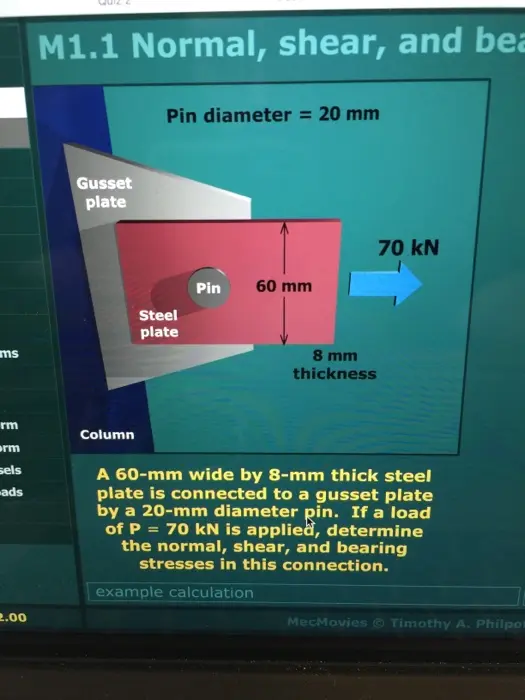

ms M1.1 Normal, shear, and bea Pin diameter = 20 mm Gusset plate Steel plate 70 kN Pin 60 mm 8 mm thickness rm orm sels ads 2.00 Column A 60-mm wide by 8-mm thick steel plate is connected to a gusset plate by a 20-mm diameter pin. If a load of P = 70 kN is applied, determine the normal, shear, and bearing stresses in this connection. example calculation MecMovies Timothy A. Philpot
