السؤال
Transcribed Image Text:

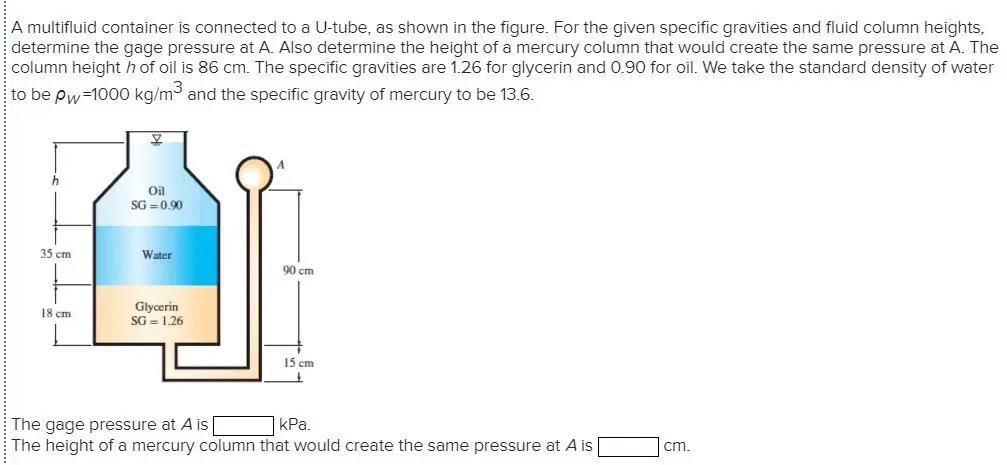

A multifluid container is connected to a U-tube, as shown in the figure. For the given specific gravities and fluid column heights,
determine the gage pressure at A. Also determine the height of a mercury column that would create the same pressure at A. The
column height h of oil is 86 cm. The specific gravities are 1.26 for glycerin and 0.90 for oil. We take the standard density of water
to be pw=1000 kg/m³ and the specific gravity of mercury to be 13.6.
Oil
SG=0.90
35 cm
Water
90 cm
18 cm
Glycerin
SG=1.26
15 cm
The gage pressure at A is [
kPa.
The height of a mercury column that would create the same pressure at A is
cm.
