السؤال
Transcribed Image Text:

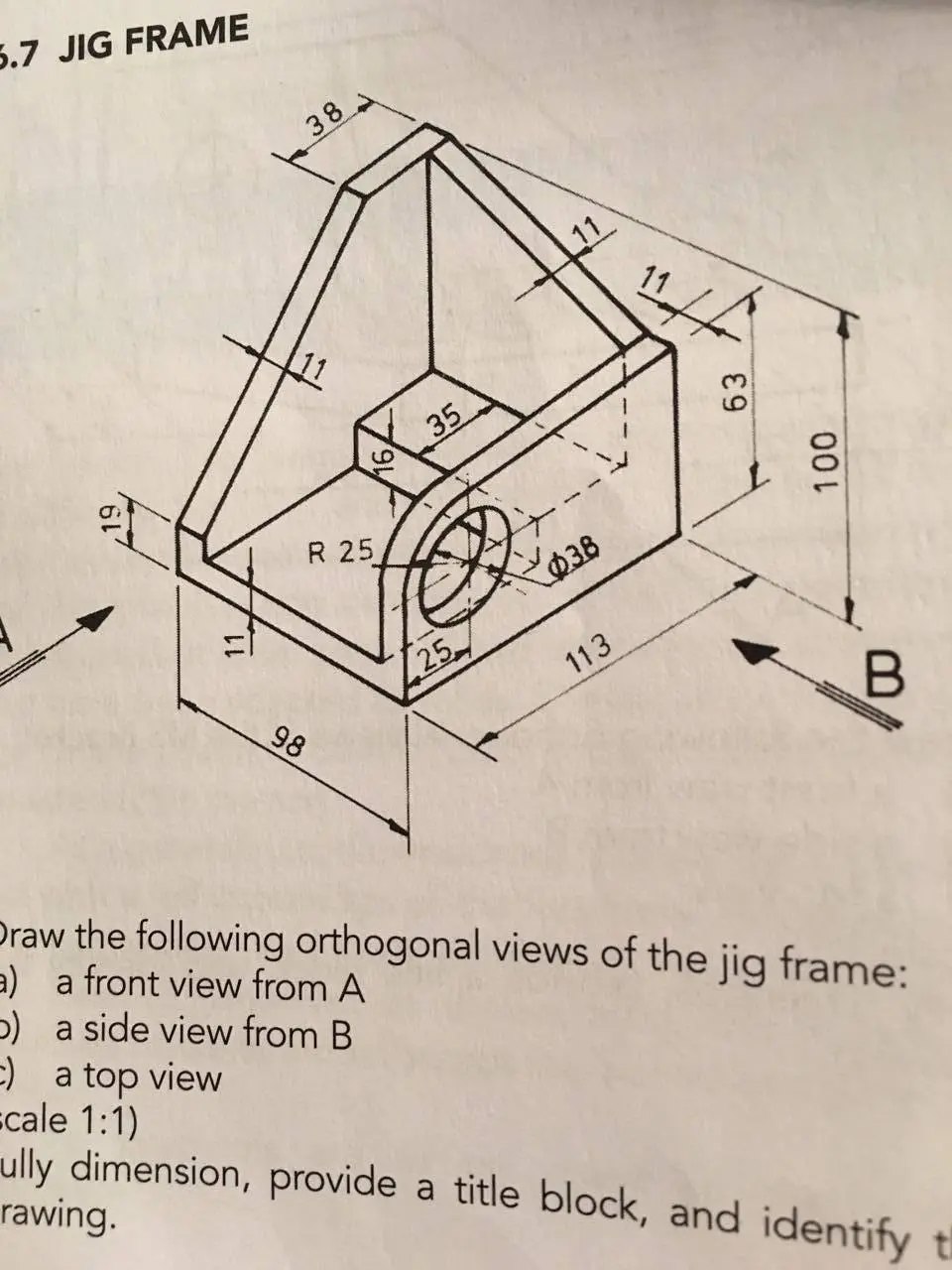

5.7 JIG FRAME
R 25
35
38
038
25
113
11
11
63
B
100
98
Draw the following orthogonal views of the jig frame:
a) a front view from A
b) a side view from B
c) a top view
cale 1:1)
ully dimension, provide a title block, and identify t
rawing.
