السؤال
Transcribed Image Text:

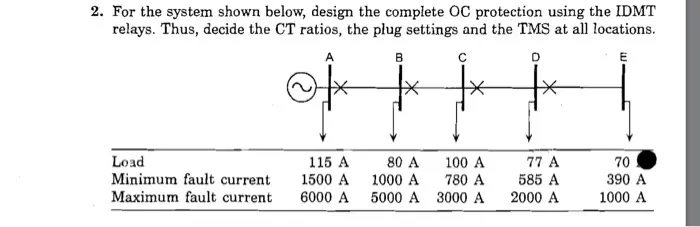

2. For the system shown below, design the complete OC protection using the IDMT
relays. Thus, decide the CT ratios, the plug settings and the TMS at all locations.
B
с
D
Load
115 A
80 A
100 A
77 A
70
Minimum fault current
1500 A
1000 A
780 A
585 A
390 A
Maximum fault current
6000 A
5000 A
3000 A
2000 A
1000 A
