السؤال
Transcribed Image Text:

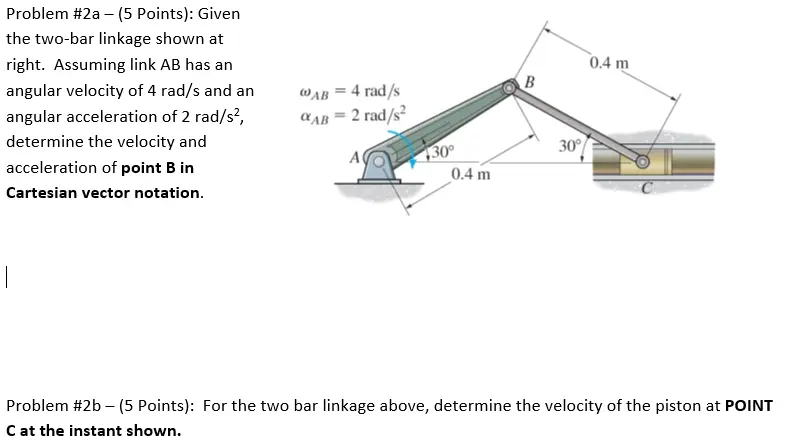

Problem #2a - (5 Points): Given
the two-bar linkage shown at
right. Assuming link AB has an
angular velocity of 4 rad/s and an
angular acceleration of 2 rad/s²,
determine the velocity and
acceleration of point B in
Cartesian vector notation.
WAB = 4 rad/s
AB = 2 rad/s²
A
0.4 m
B
30°
30°
0.4 m
Problem #2b - (5 Points): For the two bar linkage above, determine the velocity of the piston at POINT
C at the instant shown.
