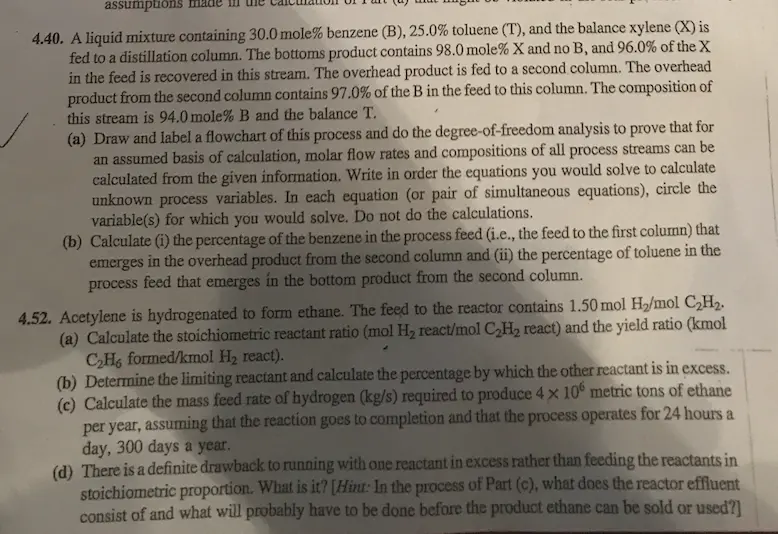

assumptions made in 4.40. A liquid mixture containing 30.0 mole% benzene (B), 25.0% toluene (T), and the balance xylene (X) is fed to a distillation column. The bottoms product contains 98.0 mole% X and no B, and 96.0% of the X in the feed is recovered in this stream. The overhead product is fed to a second column. The overhead product from the second column contains 97.0% of the B in the feed to this column. The composition of this stream is 94.0 mole% B and the balance T. (a) Draw and label a flowchart of this process and do the degree-of-freedom analysis to prove that for an assumed basis of calculation, molar flow rates and compositions of all process streams can be calculated from the given information. Write in order the equations you would solve to calculate unknown process variables. In each equation (or pair of simultaneous equations), circle the variable(s) for which you would solve. Do not do the calculations. (b) Calculate (i) the percentage of the benzene in the process feed (i.e., the feed to the first column) that emerges in the overhead product from the second column and (ii) the percentage of toluene in the process feed that emerges in the bottom product from the second column. 4.52. Acetylene is hydrogenated to form ethane. The feed to the reactor contains 1.50 mol H2/mol C₂H2. (a) Calculate the stoichiometric reactant ratio (mol H2 react/mol C₂H₂ react) and the yield ratio (kmol C2H6 formed/kmol H₂ react). (b) Determine the limiting reactant and calculate the percentage by which the other reactant is in excess. (c) Calculate the mass feed rate of hydrogen (kg/s) required to produce 4 x 106 metric tons of ethane per year, assuming that the reaction goes to completion and that the process operates for 24 hours a day, 300 days a year. (d) There is a definite drawback to running with one reactant in excess rather than feeding the reactants in stoichiometric proportion. What is it? [Hint: In the process of Part (c), what does the reactor effluent consist of and what will probably have to be done before the product ethane can be sold or used?]
