السؤال
Transcribed Image Text:

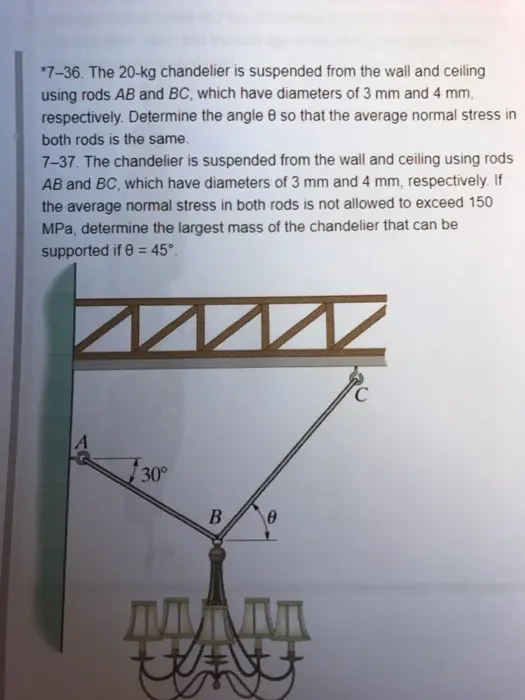

*7-36. The 20-kg chandelier is suspended from the wall and ceiling
using rods AB and BC, which have diameters of 3 mm and 4 mm,
respectively. Determine the angle e so that the average normal stress in
both rods is the same.
7-37. The chandelier is suspended from the wall and ceiling using rods
AB and BC, which have diameters of 3 mm and 4 mm, respectively. If
the average normal stress in both rods is not allowed to exceed 150
MPa, determine the largest mass of the chandelier that can be
supported if 0=45°
30°
B
9
C
