السؤال
Transcribed Image Text:

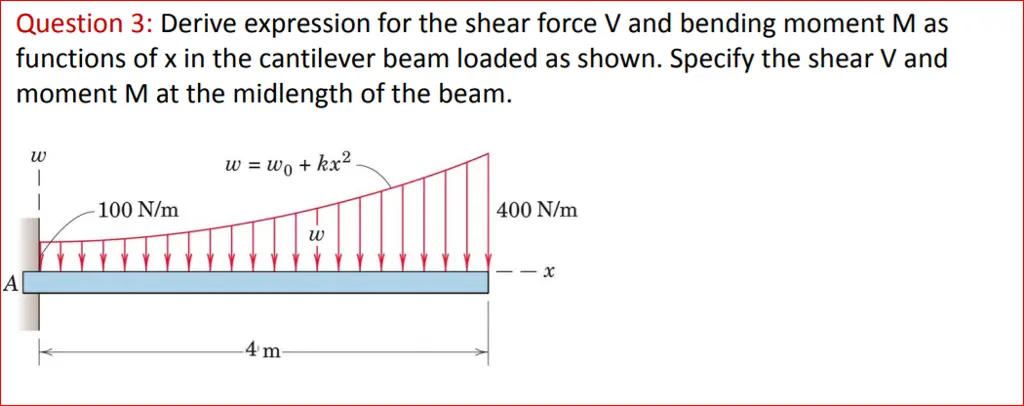

Question 3: Derive expression for the shear force V and bending moment M as
functions of x in the cantilever beam loaded as shown. Specify the shear V and
moment M at the midlength of the beam.
w
w = wo+kx²
100 N/m
4 m
400 N/m
w
X
