السؤال

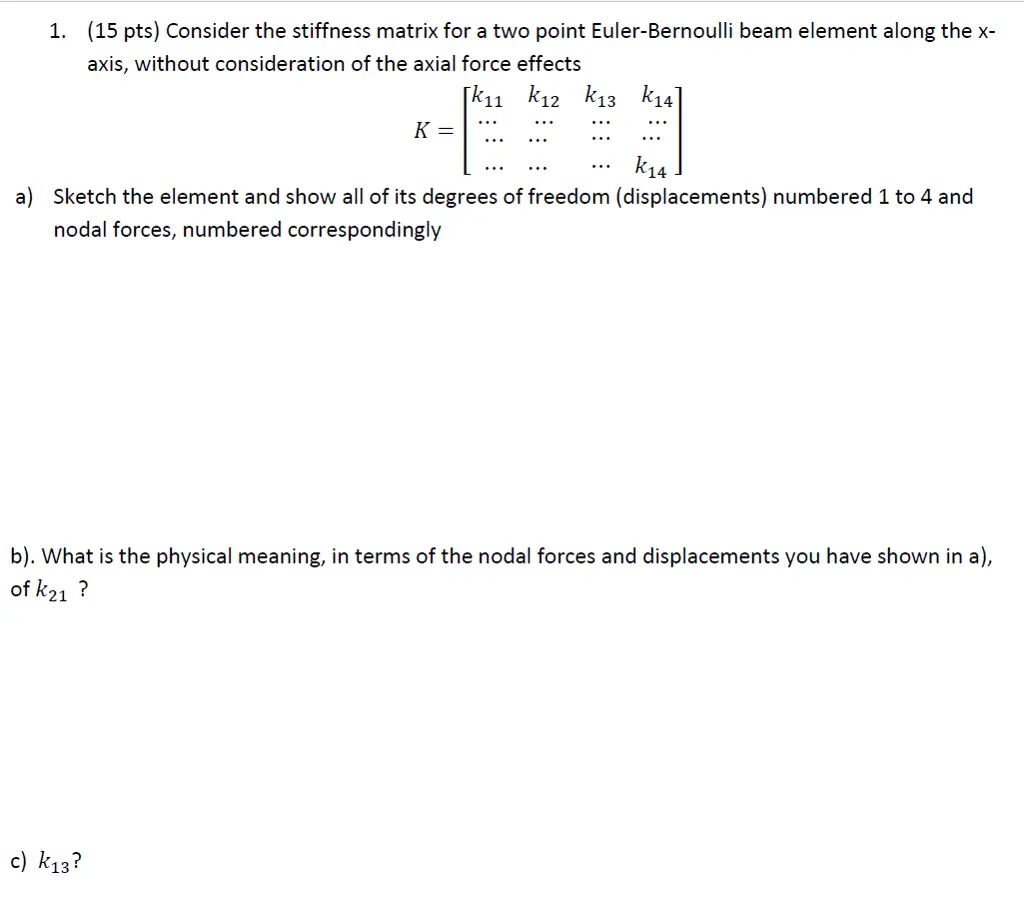

Transcribed Image Text:
1. (15 pts) Consider the stiffness matrix for a two point Euler-Bernoulli beam element along the x-
axis, without consideration of the axial force effects
[k11 k12 k13 k14]
...
K =
...
k14
a) Sketch the element and show all of its degrees of freedom (displacements) numbered 1 to 4 and
nodal forces, numbered correspondingly
b). What is the physical meaning, in terms of the nodal forces and displacements you have shown in a),
of k21 ?
c) K13?
