السؤال
Transcribed Image Text:

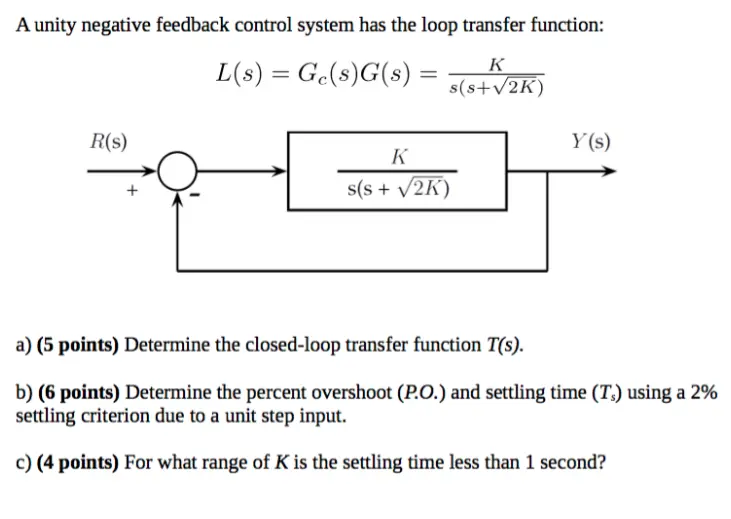

A unity negative feedback control system has the loop transfer function:
L(s) = Ge(s)G(s) =
K
s(s+√2K)
R(s)
Y(s)
K
s(s+ √2K)
a) (5 points) Determine the closed-loop transfer function T(s).
b) (6 points) Determine the percent overshoot (P.O.) and settling time (Ts) using a 2%
settling criterion due to a unit step input.
c) (4 points) For what range of K is the settling time less than 1 second?
