السؤال

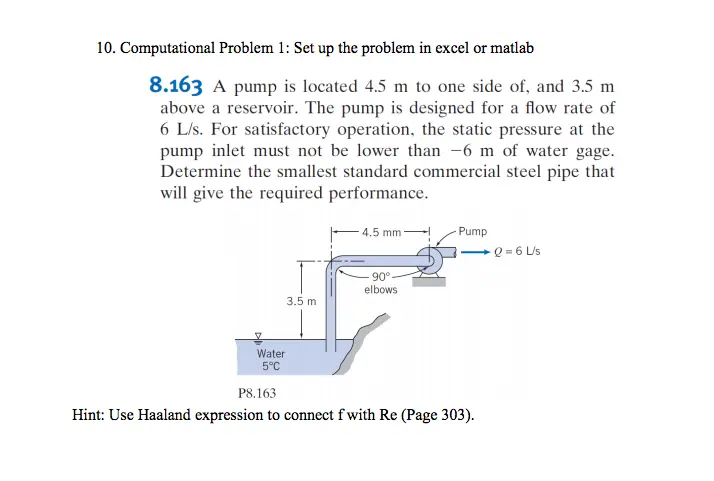

Transcribed Image Text:
10. Computational Problem 1: Set up the problem in excel or matlab
8.163 A pump is located 4.5 m to one side of, and 3.5 m
above a reservoir. The pump is designed for a flow rate of
6 L/s. For satisfactory operation, the static pressure at the
pump inlet must not be lower than -6 m of water gage.
Determine the smallest standard commercial steel pipe that
will give the required performance.
Water
5°C
4.5 mm 1
-Pump
Q-6 L/s
90°
elbows
3.5 m
P8.163
Hint: Use Haaland expression to connect f with Re (Page 303).
