السؤال
Transcribed Image Text:

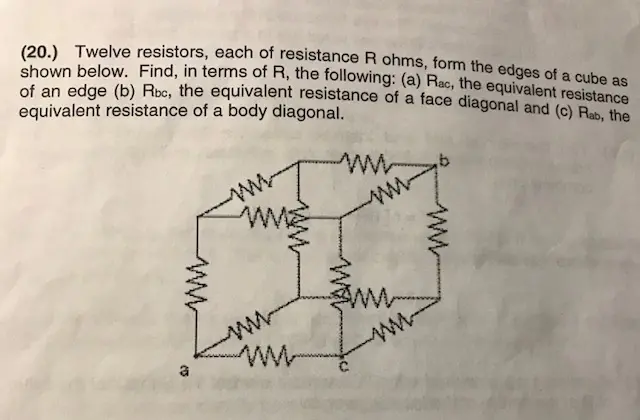

(20.) Twelve resistors, each of resistance R ohms, form the edges of a cube as
shown below. Find, in terms of R, the following: (a) Rac, the equivalent resistance
of an edge (b) Rbc, the equivalent resistance of a face diagonal and (c) Rab, the
equivalent resistance of a body diagonal.
ww
ww
ww
a
www
ww
AM
ww
www
www
www
