السؤال

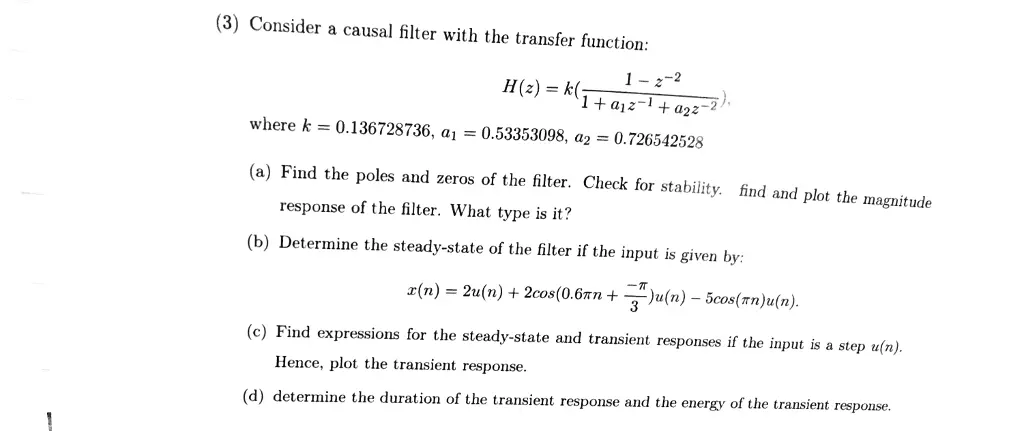

Transcribed Image Text:
(3) Consider a causal filter with the transfer function:
H(z) = k(;
1-2-2
1+α12-1
+ a2z-
),
where k 0.136728736, a₁ = 0.53353098, a2 = 0.726542528
(a) Find the poles and zeros of the filter. Check for stability. find and plot the magnitude
response of the filter. What type is it?
(b) Determine the steady-state of the filter if the input is given by:
x(n) = 2u(n) + 2cos(0.6n+)u(n) – 5cos(x)u(n).
(c) Find expressions for the steady-state and transient responses if the input is a step u(n).
Hence, plot the transient response.
(d) determine the duration of the transient response and the energy of the transient response.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
