السؤال
Transcribed Image Text:

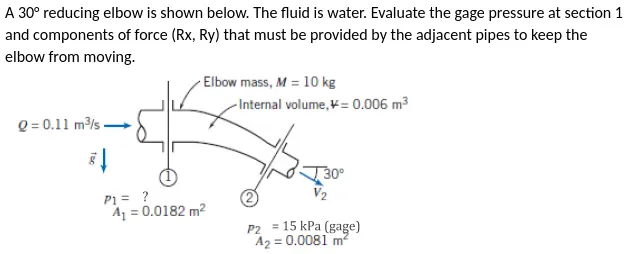

A 30° reducing elbow is shown below. The fluid is water. Evaluate the gage pressure at section 1
and components of force (Rx, Ry) that must be provided by the adjacent pipes to keep the
elbow from moving.
Elbow mass, M 10 kg
Internal volume,= 0.006 m³
Q=0.11 m³/s
P1 =
?
A₁ = 0.0182 m²
V₂
30°
P2 15 kPa (gage)
A₂ = 0.0081 m²
