السؤال
Transcribed Image Text:

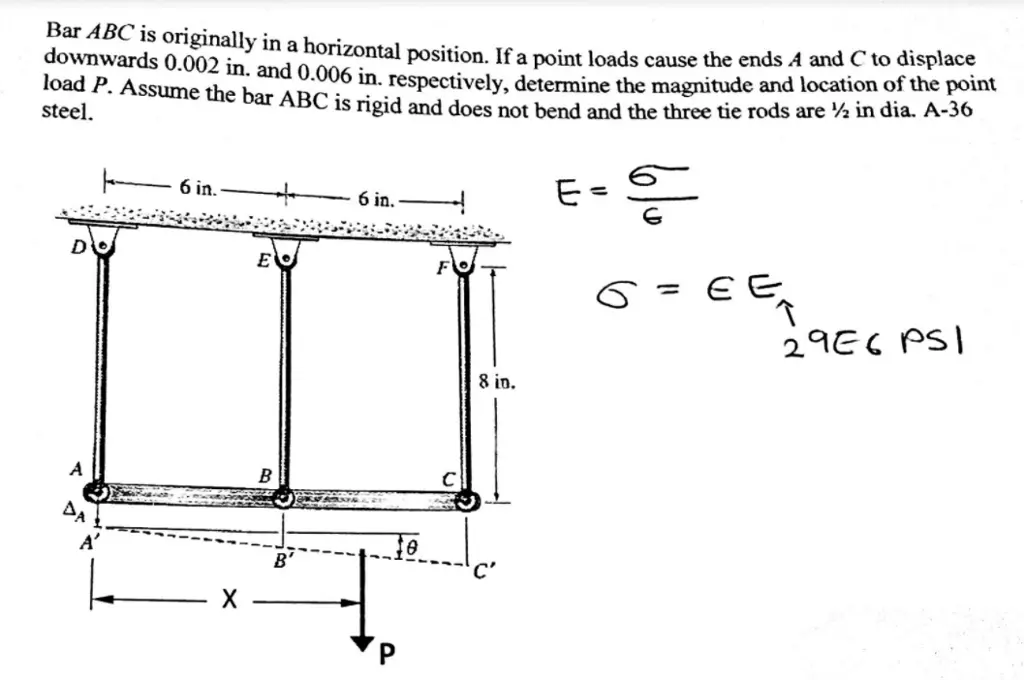

Bar ABC is originally in a horizontal position. If a point loads cause the ends A and C to displace
downwards 0.002 in. and 0.006 in. respectively, determine the magnitude and location of the point
load P. Assume the bar ABC is rigid and does not bend and the three tie rods are ½ in dia. A-36
steel.
6 in.
EO
A
ΔΑ
A'
B
6 in.
$6
F
8 in.
の
EE
↑
29E6PSI
