السؤال
Transcribed Image Text:
Problem 5:
PSPICE
4.61 a) Find the current in the 10 k2 resistor in the cir-
cuit in Fig. P4.61 by making a succession of
appropriate source transformations.
MULTISIN
b) Using the result obtained in (a), work back
through the circuit to find the power developed
by the 100 V source.

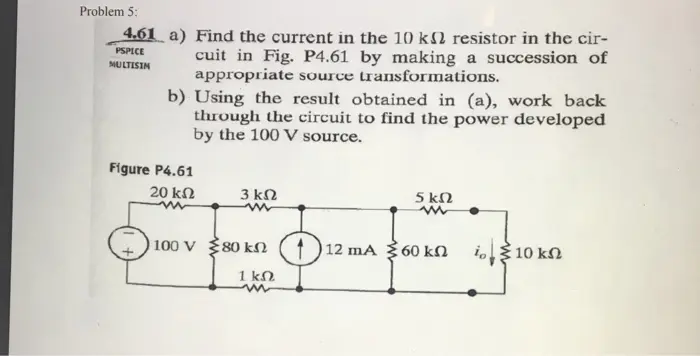

Figure P4.61
20 ΚΩ
ww
3 ΚΩ
w
5 ΚΩ
w
100 ν 380 ΚΩ
12 mA 60 k
io 310 ΚΩ
1 ΚΩ
