السؤال
Transcribed Image Text:

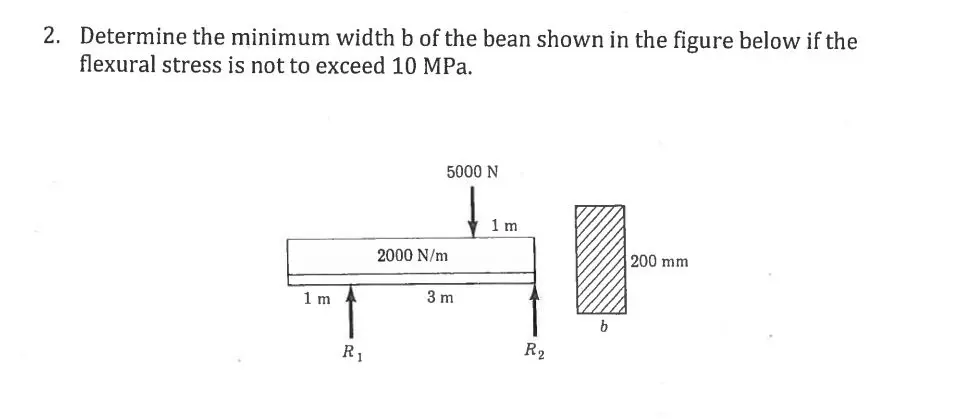

2. Determine the minimum width b of the bean shown in the figure below if the
flexural stress is not to exceed 10 MPa.
1 m
R1
5000 N
2000 N/m
3 m
1 m
200 mm
b
R2
