السؤال
Transcribed Image Text:
Air
p = 50 kPa
Oil
NO
(a)
2 m
0.6 m

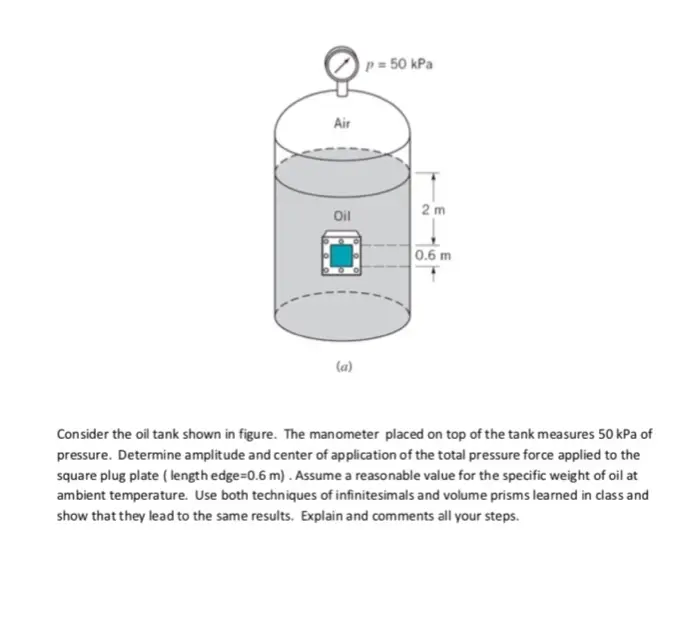

Consider the oil tank shown in figure. The manometer placed on top of the tank measures 50 kPa of
pressure. Determine amplitude and center of application of the total pressure force applied to the
square plug plate (length edge=0.6 m). Assume a reasonable value for the specific weight of oil at
ambient temperature. Use both techniques of infinitesimals and volume prisms learned in class and
show that they lead to the same results. Explain and comments all your steps.
