السؤال

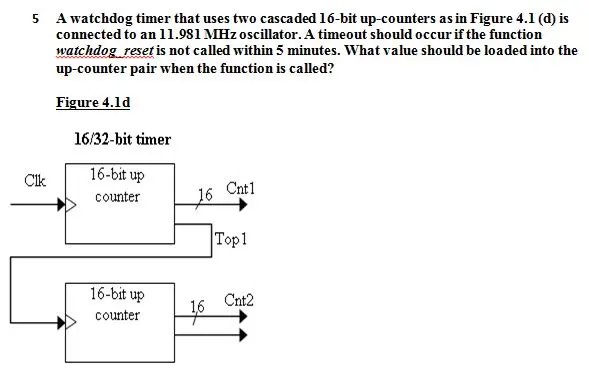

Transcribed Image Text:
5 A watchdog timer that uses two cascaded 16-bit up-counters as in Figure 4.1 (d) is
connected to an 11.981 MHz oscillator. A timeout should occur if the function
watchdog reset is not called within 5 minutes. What value should be loaded into the
up-counter pair when the function is called?
Figure 4.1d
16/32-bit timer
Clk
16-bit up
Cntl
counter
16
Top 1
16-bit up
counter
16 Cnt2
