السؤال
Transcribed Image Text:
9)

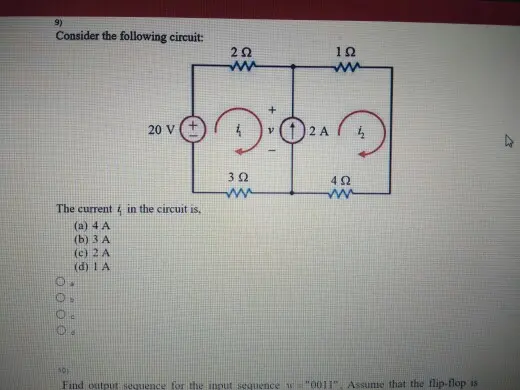

Consider the following circuit:
20
10
ww
ww
20 V +
The current in the circuit is,
0000
(a) 4 A
(b) 3 A
(c) 2 A
(d) 1 A
302
402
ww
Find output sequence for the input sequence w="0011" Assume that the flip-flop is
101
