السؤال

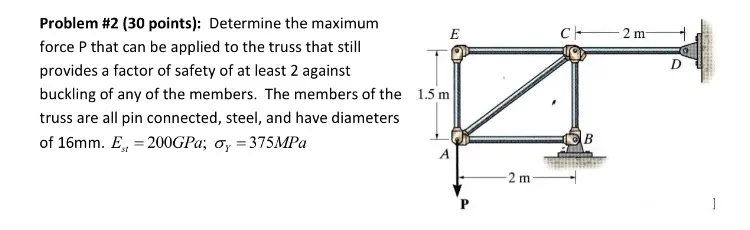

Transcribed Image Text:
Problem #2 (30 points): Determine the maximum
force P that can be applied to the truss that still
provides a factor of safety of at least 2 against
buckling of any of the members. The members of the 1.5 m
truss are all pin connected, steel, and have diameters
of 16mm. E = 200GPa; σ = 375MPa
st
E
A
-2 m-
C 2 m
B
D
1
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
