السؤال
Transcribed Image Text:
Question 4 (15/100)

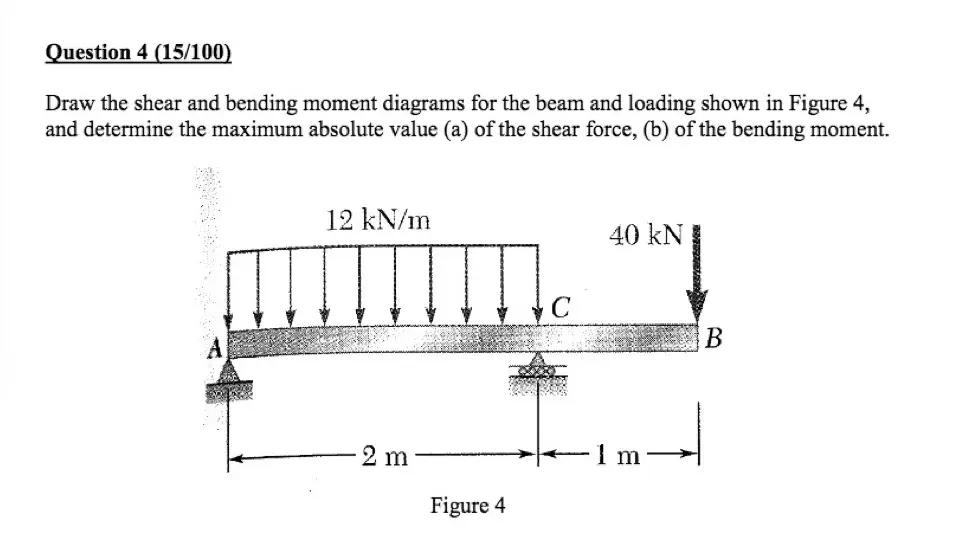

Draw the shear and bending moment diagrams for the beam and loading shown in Figure 4,
and determine the maximum absolute value (a) of the shear force, (b) of the bending moment.
12 kN/m
40 kN
2 m
Figure 4
m
B
