السؤال

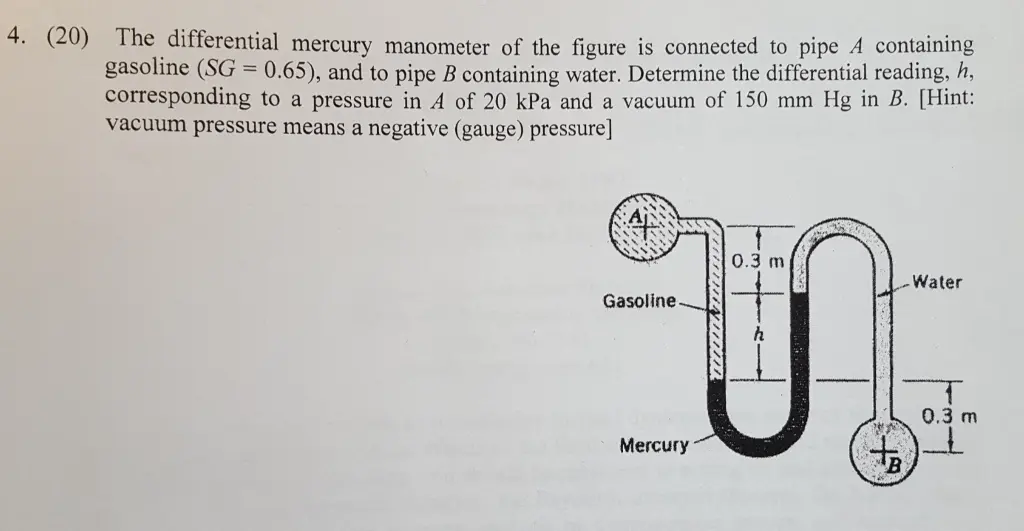

Transcribed Image Text:
4. (20) The differential mercury manometer of the figure is connected to pipe A containing
gasoline (SG = 0.65), and to pipe B containing water. Determine the differential reading, h,
corresponding to a pressure in A of 20 kPa and a vacuum of 150 mm Hg in B. [Hint:
vacuum pressure means a negative (gauge) pressure]
0.3 m
Water
Gasoline
Mercury
+
0.3 m
