السؤال
Transcribed Image Text:

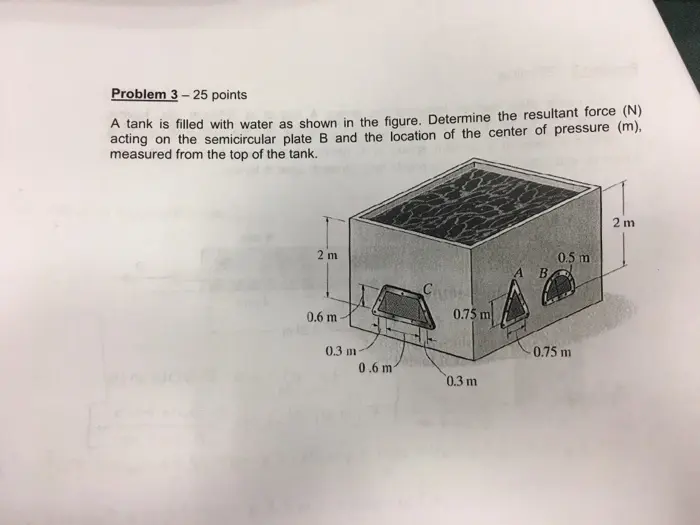

Problem 3-25 points
A tank is filled with water as shown in the figure. Determine the resultant force (N)
acting on the semicircular plate B and the location of the center of pressure (m),
measured from the top of the tank.
2 m
0.6 m
0.3 m-
0.6 m
0.75 m
0.3 m
B
0.5 m
0.75 m
2 m
