السؤال

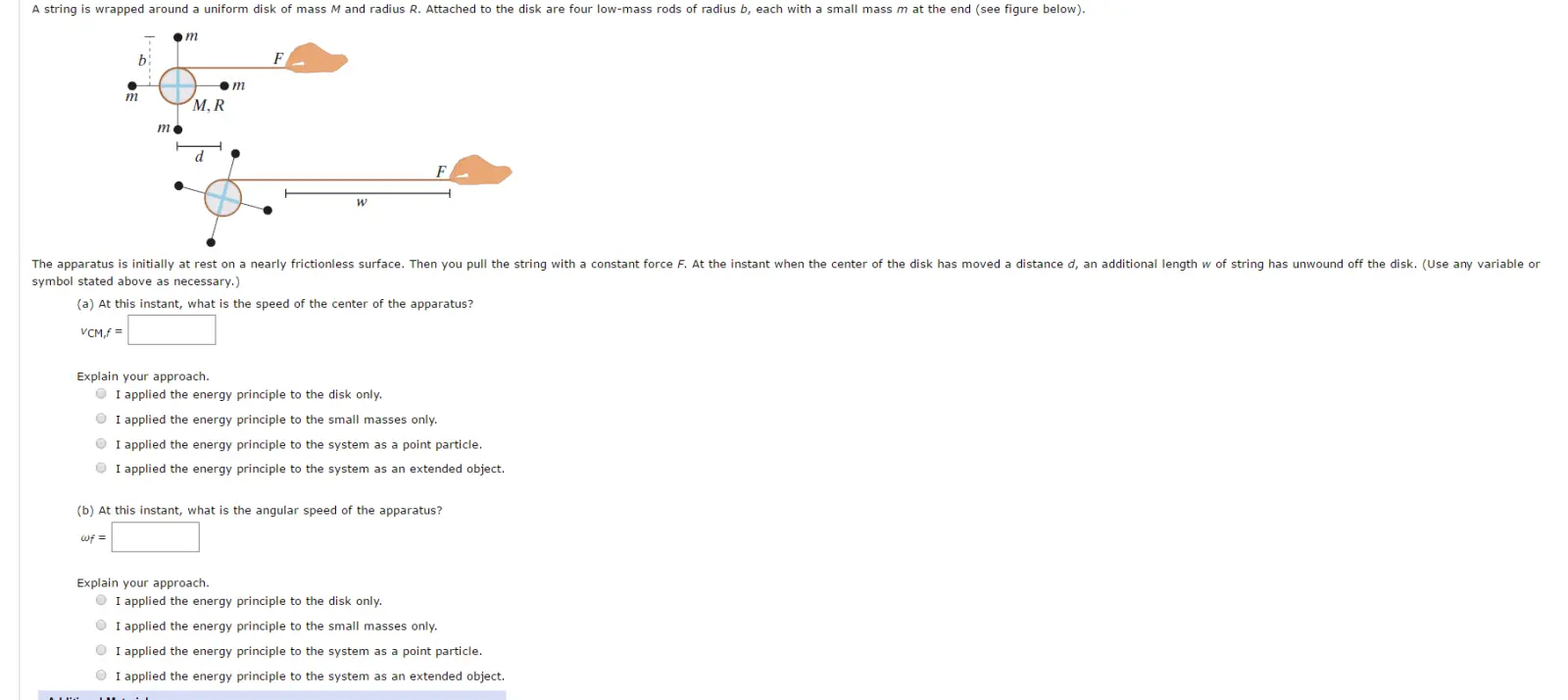

Transcribed Image Text:
A string is wrapped around a uniform disk of mass M and radius R. Attached to the disk are four low-mass rods of radius b, each with a small mass m at the end (see figure below).
●m
m
b:
M, R
m
m
F
W
F
The apparatus is initially at rest on a nearly frictionless surface. Then you pull the string with a constant force F. At the instant when the center of the disk has moved a distance d, an additional length w of string has unwound off the disk. (Use any variable or
symbol stated above as necessary.)
(a) At this instant, what is the speed of the center of the apparatus?
VCM,f=
Explain your approach.
I applied the energy principle to the disk only.
I applied the energy principle to the small masses only.
I applied the energy principle to the system as a point particle.
I applied the energy principle to the system as an extended object.
(b) At this instant, what is the angular speed of the apparatus?
wf=
Explain your approach.
I applied the energy principle to the disk only.
I applied the energy principle to the small masses only.
I applied the energy principle to the system as a point particle.
I applied the energy principle to the system as an extended object.
