السؤال
Transcribed Image Text:

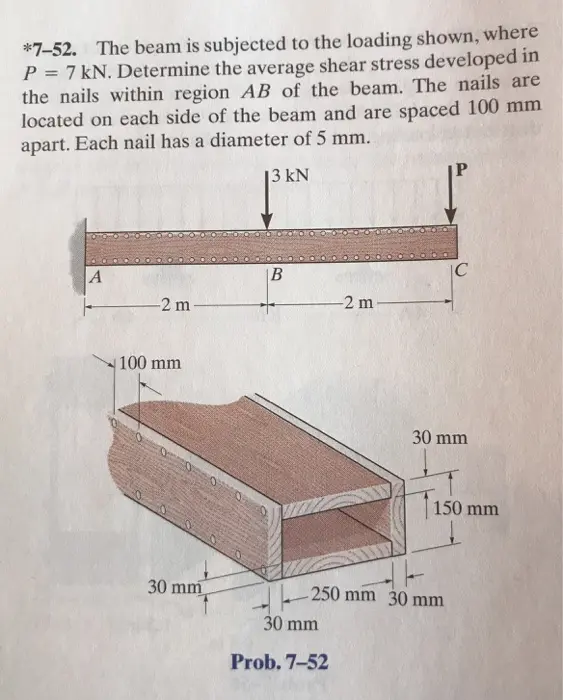

*7-52. The beam is subjected to the loading shown, where
P = 7 kN. Determine the average shear stress developed in
the nails within region AB of the beam. The nails are
located on each side of the beam and are spaced 100 mm
apart. Each nail has a diameter of 5 mm.
13 kN
C
A
B
-2 m-
-2 m
100 mm
30 mm
30 mm
150 mm
250 mm 30 mm
30 mm
Prob. 7-52
