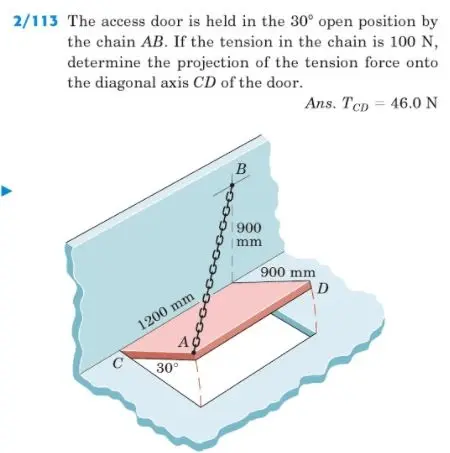

2/113 The access door is held in the 30° open position by the chain AB. If the tension in the chain is 100 N, determine the projection of the tension force onto the diagonal axis CD of the door. Ans. TCD 46.0 N B 1900 mm 1200 mm 900 mm 30° Αφ D
