السؤال

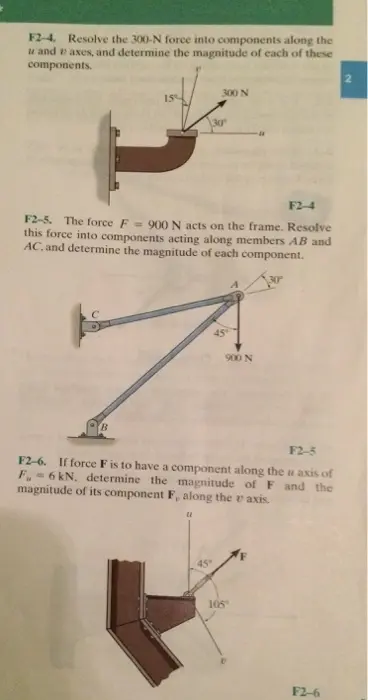

Transcribed Image Text:
F2-4. Resolve the 300-N force into components along the
u and axes, and determine the magnitude of each of these
components.
300 N
15
30°
F2-4
F2-5. The force F900 N acts on the frame. Resolve
this force into components acting along members AB and
AC, and determine the magnitude of each component.
30
900 N
F2-5
F2-6. If force F is to have a component along the u axis of
F. 6 kN, determine the magnitude of F and the
magnitude of its component F, along the axis
"
45
105°
F2-6
2
