السؤال

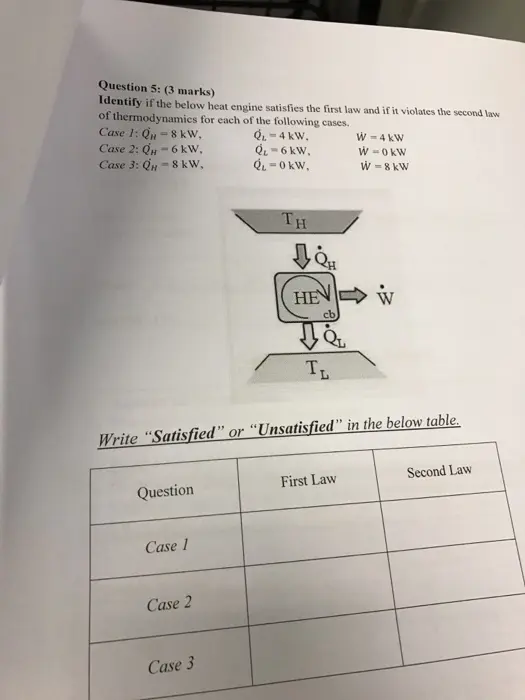

Transcribed Image Text:
Question 5: (3 marks)
Identify if the below heat engine satisfies the first law and if it violates the second law
of thermodynamics for each of the following cases.
Case 1: QH-8 kW,
Q₁-4 kW.
W-4kW
Case 2: QH-6 kW,
QL-6 kW,
W-0kW
Case 3: Q-8 kW,
Q₁-0 kW,
W-8 kW
TH
Ден
HEN
cb
TL
Write "Satisfied" or "Unsatisfied" in the below table.
Question
Case 1
Case 2
Case 3
First Law
Second Law
