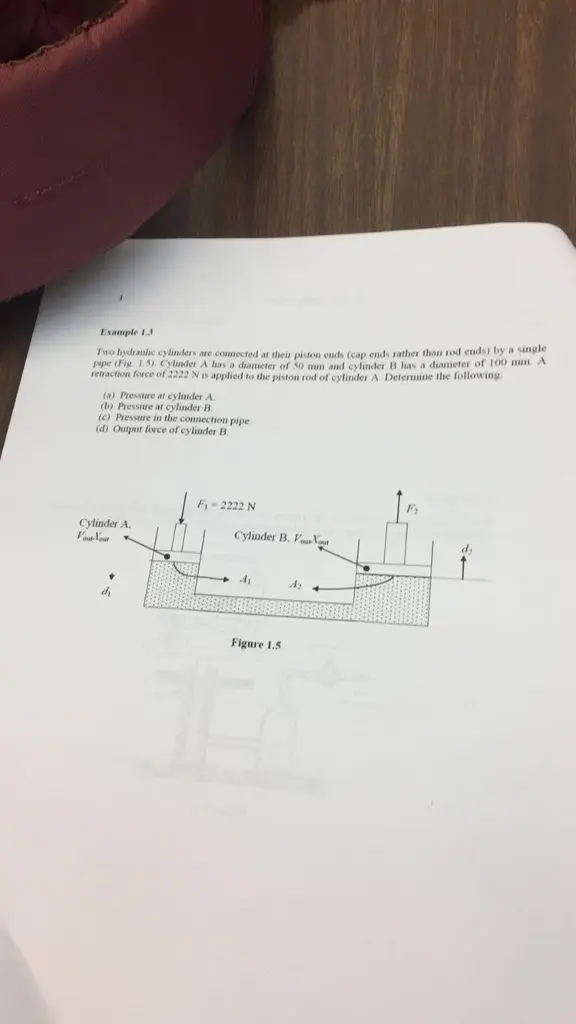

Example 1.3 Two hydraulic cylinders are connected at their piston ends (cap ends rather than rod ends) by a single pipe (Fig 1.5) Cylinder A has a diameter of 50 mm and cylinder B has a diameter of 100 mm. A retraction force of 2222 N is applied to the piston rod of cylinder A. Determine the following: (a) Pressure at cylinder A. (b) Pressure at cylinder B (c) Pressure in the connection pipe. (d) Output force of cylinder B. Cylinder A. F₁-2222 N Cylinder B. V di Figure 1.5
