السؤال

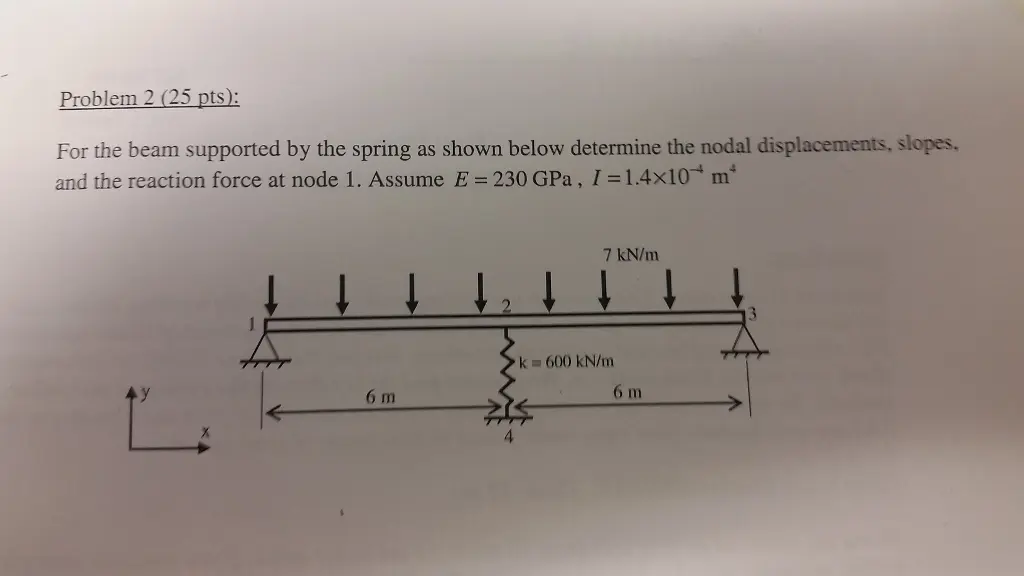

Transcribed Image Text:
Problem 2 (25 pts):
For the beam supported by the spring as shown below determine the nodal displacements, slopes,
and the reaction force at node 1. Assume E = 230 GPa, I=1.4×10 m
2
7 kN/m
k=600 kN/m
6 m
6 m
