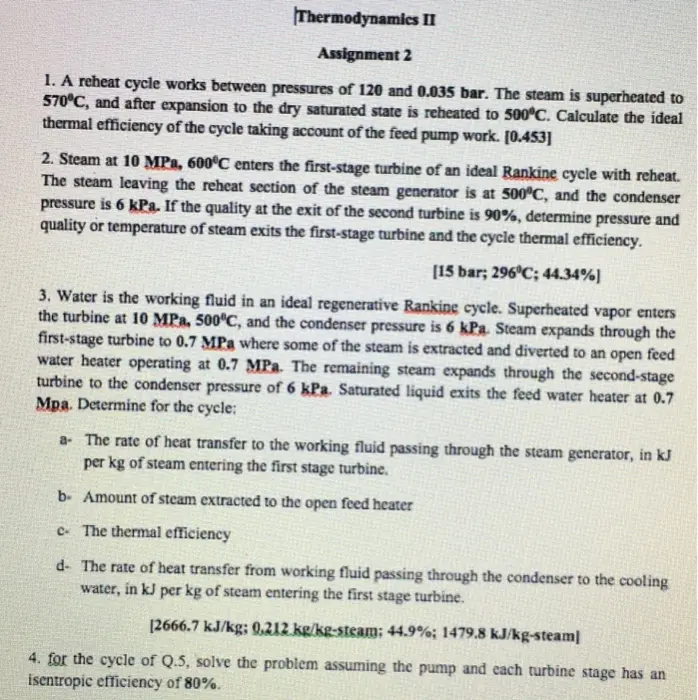

Thermodynamics II Assignment 2 1. A reheat cycle works between pressures of 120 and 0.035 bar. The steam is superheated to 570°C, and after expansion to the dry saturated state is reheated to 500°C. Calculate the ideal thermal efficiency of the cycle taking account of the feed pump work. [0.453] 2. Steam at 10 MPa, 600°C enters the first-stage turbine of an ideal Rankine cycle with reheat. The steam leaving the reheat section of the steam generator is at 500°C, and the condenser pressure is 6 kPa. If the quality at the exit of the second turbine is 90%, determine pressure and quality or temperature of steam exits the first-stage turbine and the cycle thermal efficiency. [15 bar; 296°C; 44.34%] 3. Water is the working fluid in an ideal regenerative Rankine cycle. Superheated vapor enters the turbine at 10 MPa, 500°C, and the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa where some of the steam is extracted and diverted to an open feed water heater operating at 0.7 MPa. The remaining steam expands through the second-stage turbine to the condenser pressure of 6 kPa. Saturated liquid exits the feed water heater at 0.7 Mpa. Determine for the cycle: a- The rate of heat transfer to the working fluid passing through the steam generator, in kJ per kg of steam entering the first stage turbine. b- Amount of steam extracted to the open feed heater c. The thermal efficiency d- The rate of heat transfer from working fluid passing through the condenser to the cooling water, in kJ per kg of steam entering the first stage turbine. [2666.7 kJ/kg: 9.212 kg/kg-steam; 44.9%; 1479.8 kJ/kg-steam] 4. for the cycle of Q.5, solve the problem assuming the pump and each turbine stage has an isentropic efficiency of 80%.
