السؤال
Transcribed Image Text:

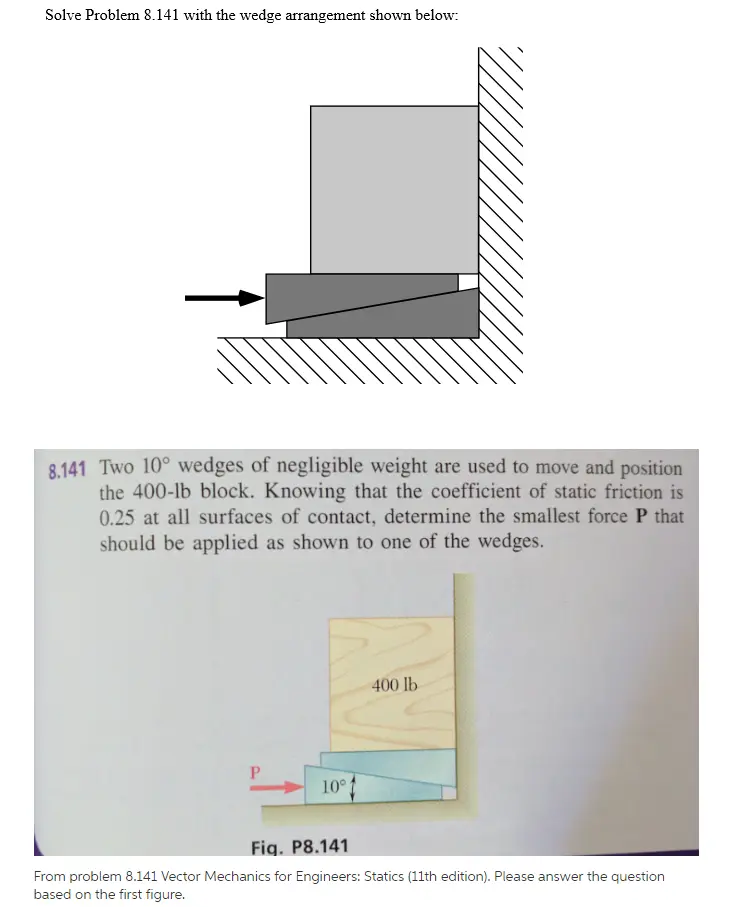

Solve Problem 8.141 with the wedge arrangement shown below:
8.141 Two 10° wedges of negligible weight are used to move and position
the 400-lb block. Knowing that the coefficient of static friction is
0.25 at all surfaces of contact, determine the smallest force P that
should be applied as shown to one of the wedges.
10°
400 lb
Fig. P8.141
From problem 8.141 Vector Mechanics for Engineers: Statics (11th edition). Please answer the question
based on the first figure.
