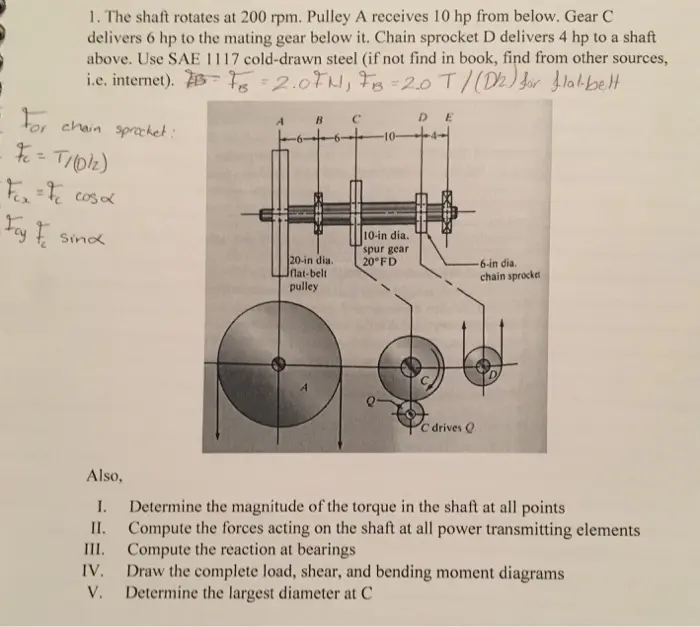

1. The shaft rotates at 200 rpm. Pulley A receives 10 hp from below. Gear C delivers 6 hp to the mating gear below it. Chain sprocket D delivers 4 hp to a shaft above. Use SAE 1117 cold-drawn steel (if not find in book, find from other sources, i.e. internet). 2.07N, FB = 2.0T/(D2) for flat-bett For chain sprocket: = T1(012) F₂ = cosα Fay F B C DE Sind 20-in dia. Iflat-belt 10-in dia. spur gear 20°FD 6-in dia. chain sprocket pulley Also, I. II. III. IV. V. C drives Q Determine the magnitude of the torque in the shaft at all points Compute the forces acting on the shaft at all power transmitting elements Compute the reaction at bearings Draw the complete load, shear, and bending moment diagrams Determine the largest diameter at C
